Amplifier Installation
I reused the two amplifiers from my previous installation - an MTX4610
providing a rated 20Wx4 into 4 ohms for the main speakers and a Pioneer
GDM-510 providing 500W into 4 ohms for the subwoofers. The MTX amplifier
will eventually be replaced, as I don't think it's powerful enough for me to
get the most out of the new speakers.
I ran the power cables for the two amplifiers through a
grommet located on the left hand side of the vehicle, inside of the fender.
The larger cable is for the subwoofer amplifier, the smaller one for the
amplifier for the main speakers.
This picture shows the subwoofer amplifier in its installed
location - below the left front seat. It fit quite nicely there, with
plenty of space for ventilation. The location of the connection points
will make it very difficult for someone's foot to accidentally dislodge
anything.
This picture shows the main amplifier in its installed
position - below the driver's seat.

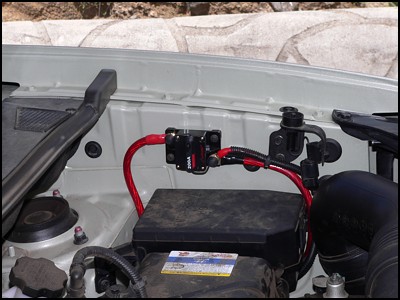

I'm currently using a 200A circuit breaker to control the
power for both amplifiers. I will be replacing this with a smaller
breaker (or two smaller ones), once they become available: a 200A circuit
breaker is way overkill for this project.
